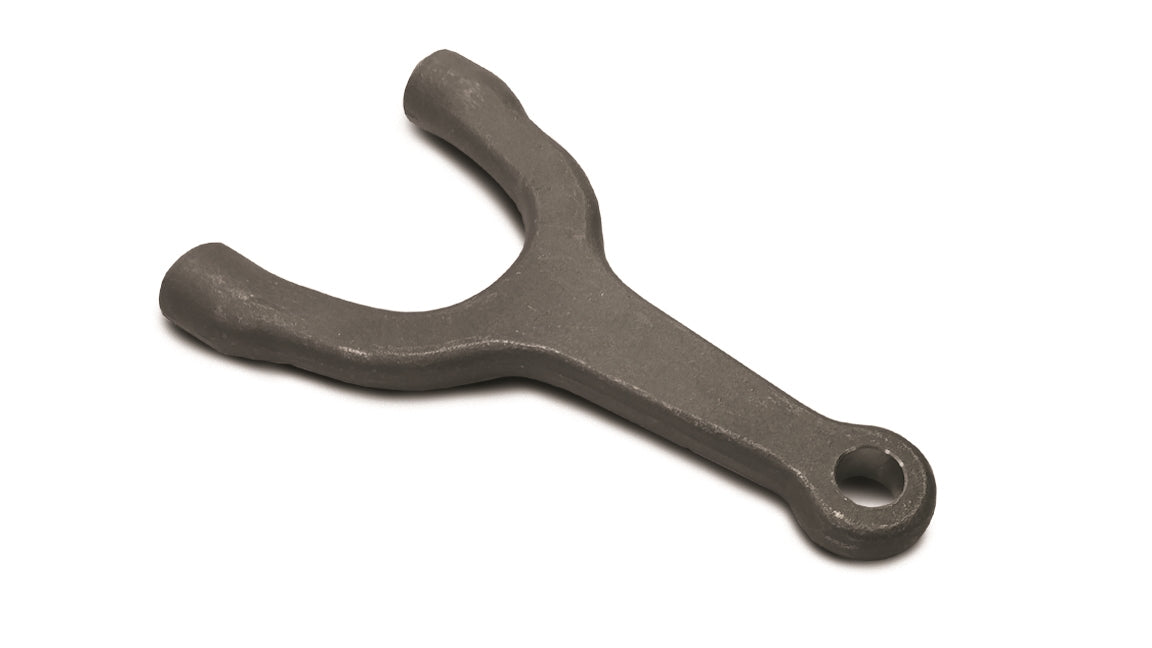

UPPER SIDE STEER SPINDLE STEERING ARM UN-POLISHED

1/2"-20 blind hole thread. Fits 1937-1948 Ford spindles. Engineered for side steer applications. Accepts 5/8" or 11/16" Ford tie rod ends. Tapered 7 degrees in one direction. Reversible to change taper direction. SOLD EACH

For Use With 1928-1948 Ford Spindles

Spindle Mounting Center to Center Width: 3.300"
Mounting Flange to Tie Rod Center: 6 1/4"
Tie Rod End Taper Angle: 7 Degree
Thread Size: 1/2" - 20

Manufactured from investment cast, 17-4 grade, stainless steel, this steering arm can be flipped over to allow the tie rod end to be inserted from the top or bottom. The long ratio is engineered to provide a smoother turning radius and a more comfortable ride than other options.
